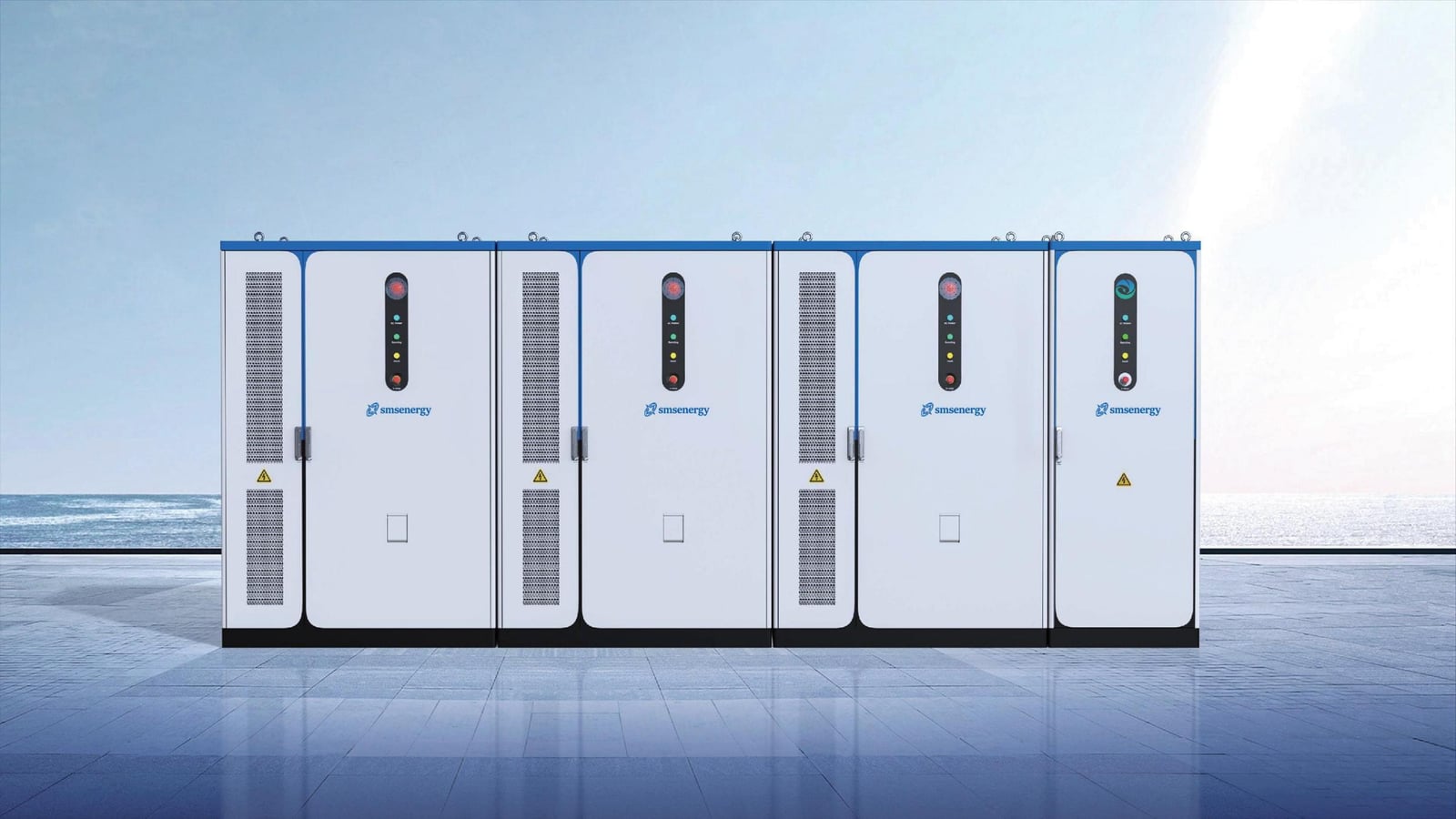

All-in-one outdoor liquid-cooled cabinet for European C&I markets. 261.248 kWh of 314Ah LFP cells, 3-level BMS architecture, 6-level electrical protection and a comprehensive fire suppression system. Plug-and-play deployment, scalable from 1 to 10 cabinets via the matching Converging Cabinet.
Values from manufacturer specification (Combined Version). Configurable for 1 to 10 cabinets via the matching Converging Cabinet — contact engineering for system-level sizing.
| Cell chemistry | LFP (Lithium Iron Phosphate) |
|---|---|
| Cell type | 3.2 VDC, 314 Ah prismatic |
| Battery configuration | 1P52S × 5S |
| Nominal energy | 261.248 kWh |
| Nominal voltage | 832 Vdc |
| Voltage range | 715 – 936 Vdc |
| Rated C-rate | 0.5C |
| Overcurrent protection | Fuse + Breaker |
| BMS architecture | 5 × BMU + 1 × BCMU (3-level) |
| Cell balancing | Active balancing, 2 A |
| Rated voltage | 400 VAC |
|---|---|
| Grid frequency | 50 / 60 Hz |
| Rated power | 105 kW |
| Max. power | 115.5 kW |
| Wiring configuration | 3P + N + PE (N terminal reserved) |
| Isolation | Non-isolated |
| Operation mode | On-grid and off-grid |
| Surge protective device | Type 2 |
| Communication | LAN, CAN, RS485, I/O |
| Cooling method | Intelligent liquid cooling |
|---|---|
| Temperature uniformity | Extremely uniform field — long cycle life |
| Auxiliary consumption | Low (high system RTE) |
| Working temperature | -30 ~ 50 °C (derating above 45 °C) |
| Installation | Outdoor |
| IP rating | IP55 |
| Corrosivity category | C4 (up to C5 available) |
| O&M | OSS system, Cloud + Mobile App |
| Dimensions (W×D×H) | 1450 × 1300 × 2150 mm |
|---|---|
| Weight | 2,650 kg |
| Installation | Back-to-back & side-by-side; standard container shipping |
| System scaling | 1 to 10 cabinets via Converging Cabinet |
| Fire detection | Smoke + Heat + Combustible-gas detectors |
| Deflagration venting | Ventilation |
| Fire extinguishing | Aerosol + Dry water pipe |
| Fire alarm | Sound-light alarm |
| Electrical protection | 6-level architecture |
BMU + BCMU hierarchy with Holistic Cell Data Management; six layers of electrical protection from cell to grid interface keep faults contained.
Extremely uniform temperature field across all cells preserves capacity and lifecycle. Low auxiliary consumption translates to higher round-trip efficiency.
Smoke + heat + combustible-gas detection, deflagration venting, aerosol with dry-water-pipe extinguishing, plus sound-light alarm — defence in depth.
Operations Support System with cloud dashboard and mobile app for remote monitoring, dispatch, alarms and active cell balancing.
Back-to-back and side-by-side installation. Scale capacity by adding cabinets to a single Converging Cabinet (1520 A, 3P+N+PE) — no re-engineering.
Compliant with IEC 62619, UN 38.3, EN IEC 62477-1, EN IEC 61000-6-2/4 and IEC 62933-5-2. Compatible with multiple European market grid-connection standards.
Every certification you need to win utility tenders and pass insurer reviews.
Industrial Li-ion battery safety standard.
Transport safety certified.
Power conversion safety & EMC compliance.
Electrochemical storage system safety, EU markets.
PDF includes: detailed electrical drawings, dimensional drawings, bill of materials, certifications register, and recommended commissioning checklist.
